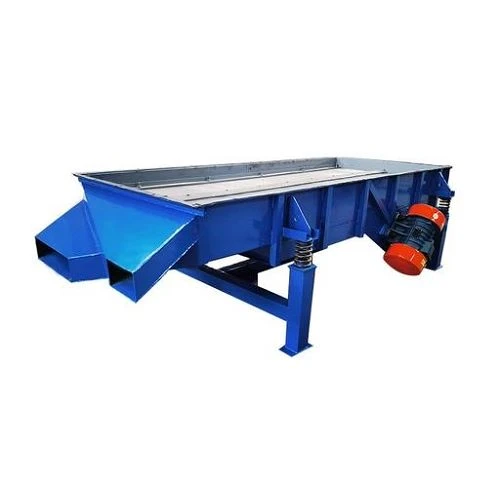

Linear Vibrating Screen is a high-efficiency screening equipment driven by dual vibration motors. It adopts linear vibration trajectory principle, widely used for grading and impurity removal of powder, granular, block and slurry materials in mining, metallurgy, building materials, coal, food, chemical, abrasive, plastic and other industries. It can realize continuous screening operation with stable performance, large processing capacity, high precision and good sealing effect, making it an ideal screening solution for industrial production lines.
Product Details
High-strength steel structure, durable & stable
Efficient screening, energy-saving & reliable
| Item | Details |
| Product Name | Linear Vibrating Screen |
| Main Purpose | Material grading, impurity removal, powder screening, block material sorting |
| Functional Features | Large capacity, high precision, low noise, long screen life, fully sealed, no dust leakage |
| Material | Carbon steel / 304 stainless steel |
| Color | Blue, gray (customizable) |
| Screen Mesh | 2–325 mesh |
| Layers | 1–6 layers |
| Screen Size | 1000×2000mm, 1000×2500mm, 1000×3000mm, 1500×3000mm, 1500×4000mm |
| Motor Power | 0.25–3.7kW |
| Installation Angle | 0–10° |
| Applicable Condition | Dry and wet materials, various powder, granule and block materials |
| Origin | China |
| Brand | Ruidi |
| MOQ | 1 set |
Product Advantages
Large Processing Capacity & High Efficiency:
Adopts dual-vibration motor drive with strong and stable exciting force, realizing fast linear conveying and screening, greatly improving output and efficiency.
Long Screen Life & Easy Replacement:
Unique screen structure design supports quick screen replacement within 3–5 minutes. It is compatible with nylon, PP, special steel mesh and other materials.
Good Sealing & Environmentally Friendly:
Fully closed structure effectively prevents dust overflow, keeps the workshop clean and meets environmental protection requirements.
Low Energy Consumption & Low Noise:
Stable vibration force reduces energy loss and running noise, creating a friendly working environment.
Stable Structure & Strong Durability:
The screen body is welded by rolled steel plate and profile with high rigidity, firmness and long service life.
Easy Installation & Maintenance:
Simple structure, convenient operation and maintenance, suitable for assembly line continuous operation.
Wide Application Range:
Suitable for screening various dry materials, widely used in multiple industries with strong adaptability.
Working Principle
Linear Vibrating Screen adopts dual vibration motors drive. When two motors run synchronously and reversely, the exciting force generated by eccentric blocks counteracts in the direction parallel to the motor axis and superimposes into a resultant force in the vertical direction. Therefore, the movement track of the screen is a straight line. Under the combined action of exciting force and material gravity, materials are thrown up and move linearly forward on the screen surface, so as to achieve screening and classification.
Notes
1. Install the machine on a solid foundation and keep it level to ensure stable operation.
2. Check and fasten all bolts before starting, especially the motor fixing bolts.
3. Remove the transportation fixing device before power on.
4. Ensure the motor rotation direction is correct.
5. Feed materials evenly during operation, no overload feeding.
6. Regularly check the screen tension and wear condition, replace damaged parts in time.
7. Keep the screen body away from hard contact to avoid abnormal vibration.
8. Regularly maintain the motor and add lubricating oil as required.
FAQ
Q: 1.What materials is the linear vibrating screen suitable for?
A: It is suitable for powder, granular, block and dry materials in mining, metallurgy, building materials, coal, food, chemical, abrasive and other industries.
Q: 2.Can the screen layer be customized?
A: Yes, 1–6 layers of screens can be customized according to grading requirements.
Q: 3.How long does it take to replace the screen?
A: The unique design enables quick screen replacement within 3–5 minutes.
Q: 4.Is it suitable for assembly line use?
A: Yes, fully closed structure and automatic discharge make it perfect for continuous production lines.
Q: 5.Do you provide after-sales service?
A: Yes, we provide installation guidance, commissioning, maintenance consultation and spare parts supply.
