Products Description

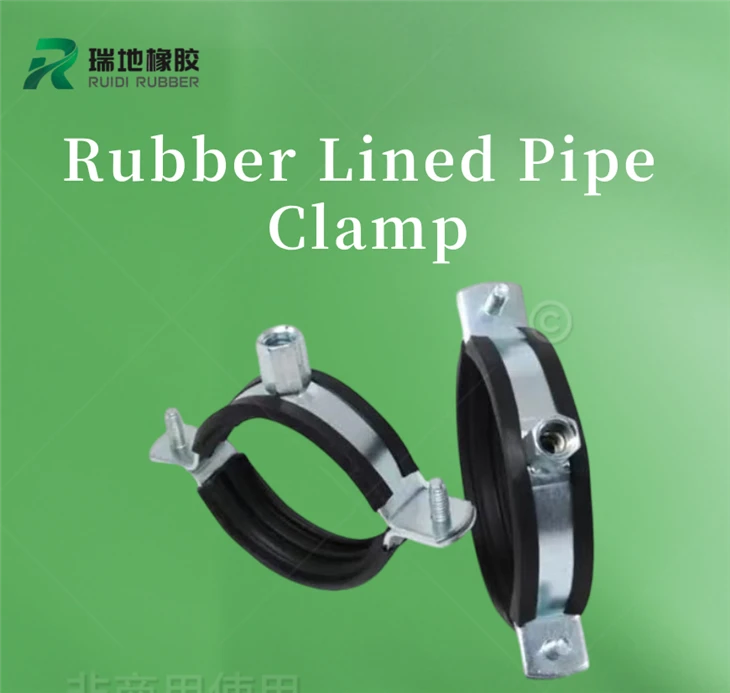

| Product Name | Rubber Lined Pipe Clamp |

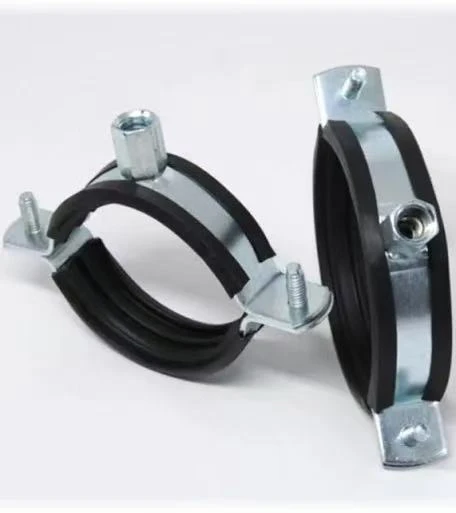

| Product Form | Two-piece split "O" shape clamp with dual-bolt locking, integrated EPDM rubber cushion lining |
| Applicable Pipe | Copper Tube / Steel Pipe |
| Main Material | Galvanized Carbon Steel + EPDM Rubber / 304 Stainless Steel + EPDM Rubber |

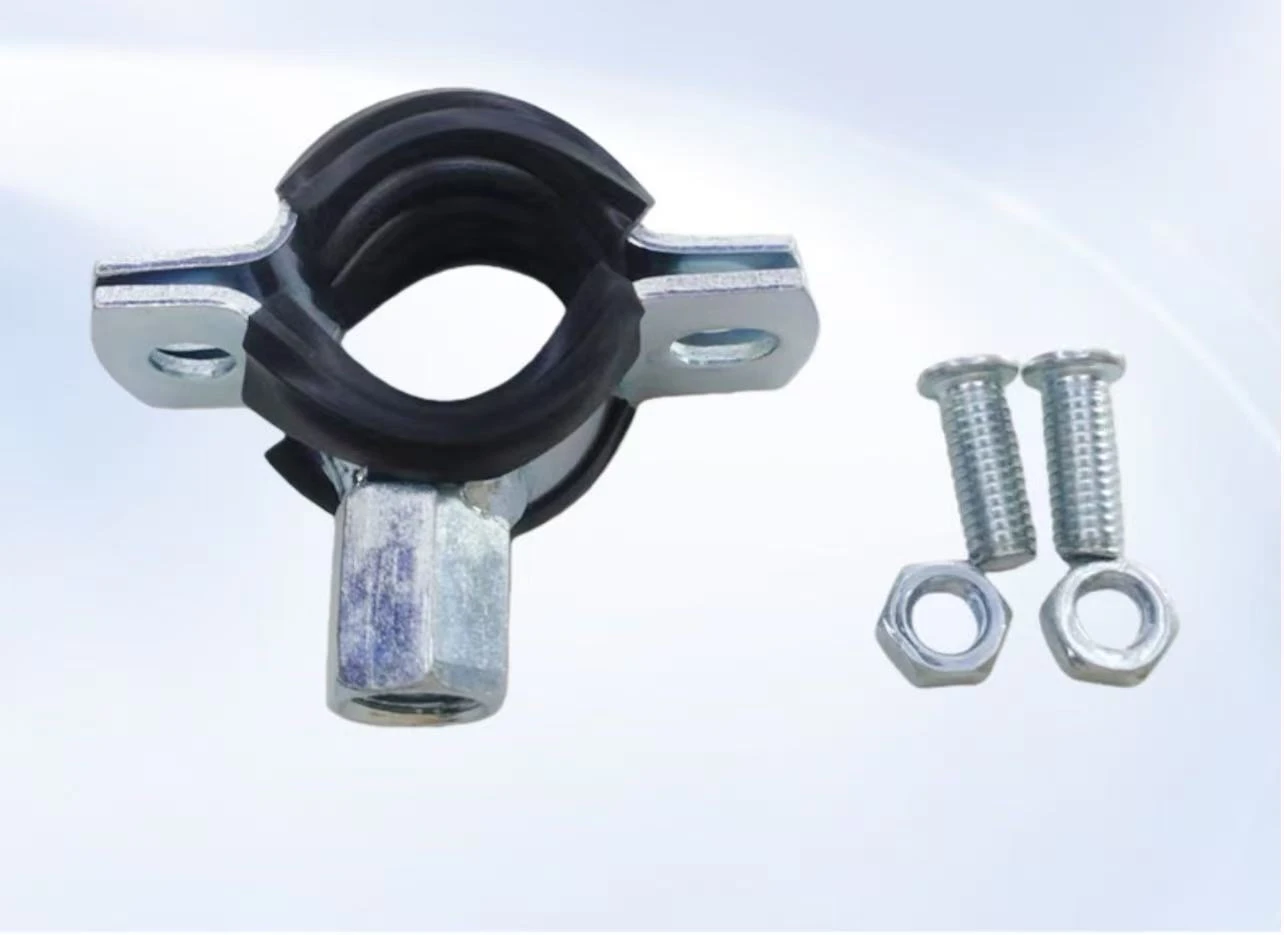

| Product Composition | Clamp Body, Mounting Base Plate, Hex Socket Bolt, Gasket |
| Lining Material | EPDM |
| Temperature Range | -40°C to 120°C |
| Available Sizes | 3/4″, 1″, 1-1/4″, 1-1/2″, 2″, 2-1/2″, 3″; custom sizes on request |
| Quality Certification | RoHS, REACH, IATF16949 |
Product Advantages
Product Advantages
- Rubber lining that works as hard as the clamp: The EPDM insert continuously absorbs vibration and isolates the metal body from the pipe, preventing abrasion and cutting noise in active piping systems.
- Built for sustained load, not just static support: The split clamp body and dual-bolt fastening distribute force evenly around the pipe, maintaining grip under vibration without crushing or loosening.
- One nut, two rod options: The compound M8/M10 threaded base accepts either rod size directly, so no adapters or extra fittings are needed on site.
- Material selected to suit the installation environment: Galvanized carbon steel covers standard indoor work; 304 stainless steel handles moisture, outdoor exposure, and mildly corrosive conditions.
- Sizes that map to real pipe dimensions: Seven standard models span 3/4″ to 3″ outer diameter, matching common HVAC and plumbing pipe specifications. Non-standard sizes can be produced on request.
Installation Instructions
Confirm the pipe outer diameter and select the matching clamp model; verify the suspension rod thread is M8 or M10.
Fit the clamp halves around the pipe, insert the bolts, and tighten evenly in a diagonal pattern until the rubber lining contacts the pipe firmly - do not over-compress.
Thread the suspension rod into the bottom nut and secure the clamp to the overhead support structure; check alignment and re-tighten if necessary.
Application Scenarios & Precautions
Application Scenarios
HVAC systems, building plumbing and drainage piping, industrial equipment fluid piping, mechanical room pipe vibration-damping suspension.
Precautions
- Select by measured pipe outer diameter (OD), not by nominal inch size - pipe standards vary between materials and regions.
- Galvanized clamps are intended for dry indoor use; specify 304 stainless steel for humid, outdoor, or chemically exposed installations.
- Tighten bolts evenly and avoid excessive torque - over-compression deforms the EPDM lining and can damage the pipe surface.
- The EPDM lining has a maximum continuous service temperature of 120°C; it is not suitable for over-temperature media lines.
- Verify that the suspension rod thread matches the clamp's M8 or M10 internal thread before installation to ensure a stable, safe connection.
Company Profile
Langfang Ruidi New Materials Technology Co., Ltd
Since its establishment in 1987, Langfang Ruidi New Material Technology Co., Ltd. has focused on developing and producing rubber sealing and vibration-damping components for demanding applications. Drawing on more than 30 years of technical experience, the company supports customers in air conditioning, refrigeration, automotive, plumbing, and general machinery industries. This long-standing dedication to product quality and dependable performance has built lasting relationships with well-known brands in both domestic and international markets.
why choose our products?
Installation flexibility without extra parts: The compound M8/M10 nut lets one clamp accept either rod size directly, so contractors can work with whichever suspension rod is already on site.
Quieter, longer-lasting piping runs: The EPDM liner separates metal from pipe, soaking up vibration and preventing the abrasion that leads to premature pipe wear.
Specified to match the job, not the other way around: Galvanized carbon steel keeps indoor budgets in check, while 304 stainless steel stands up to moisture and corrosive exposure - across seven sizes from 3/4″ to 3″.
